CERVICAL

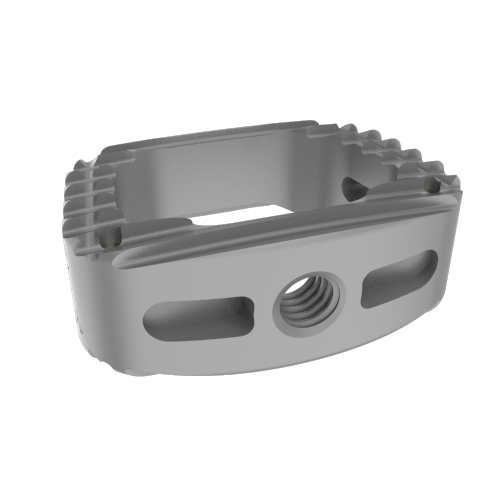

Alta Cervical Cage
The Alta anterior cervical interbody fusion device is available in a variety of footprints, heights, and lordotic angles, tailored to accommodate diverse patient anatomies. Offered in both large and small footprints, it provides options with 6° and 10° of lordosis. Designed with a spacious graft window, it supports a robust fusion column. Made from PEEK, the implant includes tantalum markers to enhance visualization under fluoroscopy.
Key Features
- Small footprint measure 14mm x 12mm
- Large footprint measures 16mm x 14mm
- Heights range from 5mm to 14mm in 1mm increments
- 6° and 10° of lordosis
CERVICAL

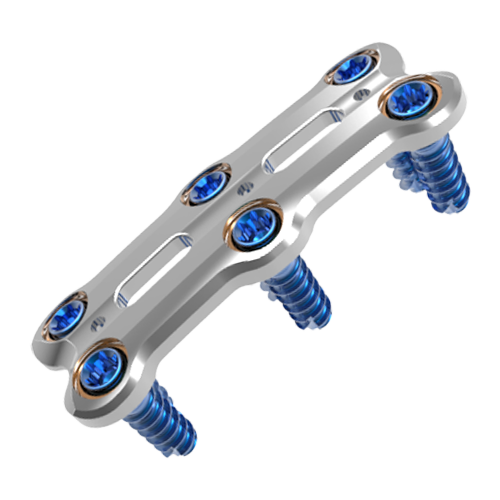

Emerge Cervical Plate
This low-profile, advanced anterior cervical plate features high cephalad and caudad screw angulations. Both the locking cover and screws are compatible with the same driver for convenience. The cover includes positive stops in both open and closed positions, offering tactile feedback. Additionally, large windows are incorporated to enhance graft visualization.
Key Features
- 2.1mm thick (1-3 Level Plates): 2.3mm (4 Level); 2.5mm (5 Level)
- 17mm wide
- 28° Max screw angulation at the cephalad/Caudad Screws (18° Conical range of motion)
- Plate Lengths (measured end to end): 1 Level: 18-38mm (2mm inc); 2 Level: 32-56mm (2mm inc); 3 Level: 43- 73mm (3mm inc); 4 Level: 50- 90mm (4mm inc); 5 Level: 75- 110mm (5mm inc)
Thoracic

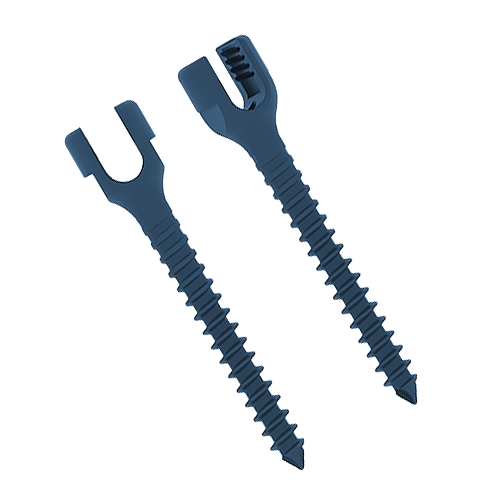

Stowe Pedicle Screw
The Stowe traditional pedicle screw system is designed to immobilize and stabilize spinal segments in the thoracolumbar region. It offers three types of tulips—Low, Reduction, and MIS—enabling effective manipulation and deformity correction.
Key Features
- Low top, Reduction, and MIS tulips
- Screws: Diameters 4.5mm-8.5mm; Lengths 25mm-110mm; 60° cone of angulation
- Rods: Straight and Pre-Curved; Lengths: 25mm-600mm
- A double lead thread provides rapid insertion and secure anchorage in cortical and cancellous bone
Thoracic

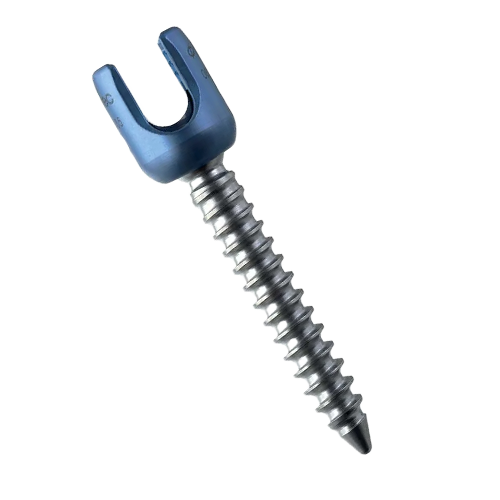

Whistler Modular Pedicle Screw
The Whistler Modular Pedicle Screw System features a versatile modular tulip, enabling screw insertion before attaching the tulip. This design enhances in-situ visualization and offers the flexibility to choose among three tulip options—Low-top, Reduction-top, or Minimally Invasive-top—after screw placement. Screws are available in solid, cannulated, and HA-coated options.
Key Features
- A double lead thread provides rapid insertion and secure anchorage in cortical and cancellous bone.
- Shanks are offered in both solid and cannulated versions to facilitate MIS surgical techniques
- Low top, Reduction, and MIS tulips
- Hydroxyapatite (HA) coated screws are offered to improve pullout strength in weakened bone
- 5.5 and 6.0mm rods and tulips & 70° cone of angulation
Lumbar

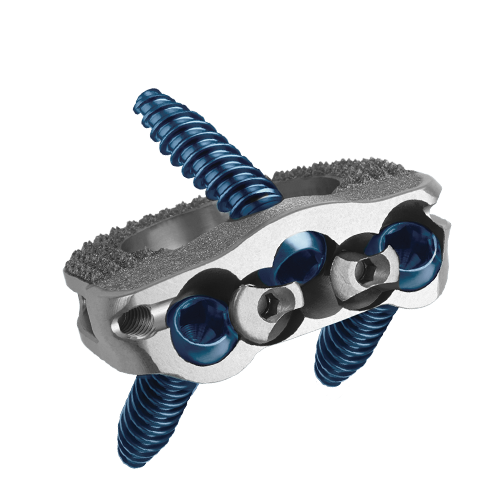

E3D Alif System
The E3D-ATM Interbody System provides interbody fusion devices designed to provide structural stability during spinal fusion. The E3D-A Interbody system consists of interbodies offered in various sizes to accommodate surgical needs and anatomic requirements. The interbodies were designed to be placed via an anterior approach. The System offers both Integrated and Static Interbodies.
Key Features
- Double lattice architecture designed to encourage bone growth on and through the cage.
- Major Lattice allows for the distribution of loads and bone packing.
- Trocar and Blunt Tip Screws • Ø5.5 and Ø6.0 mm • 20-40 mm in 5mm increments
- Integrated One-step locking mechanism
Thoracic

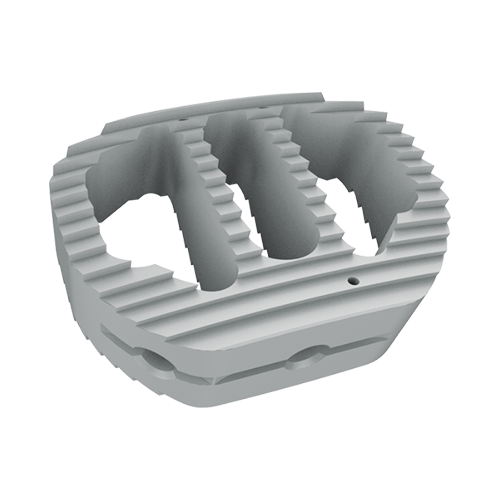

Keystone ALIF
The Keystone anterior lumbar interbody fusion device is designed with large graft windows, a specialized tooth pattern to prevent expulsion, and options for both straight and oblique insertion. Available in a range of sizes and lordotic angles, the Keystone implant can be precisely tailored to meet each patient's anatomical needs. Constructed from PEEK, it features four tantalum markers for enhanced visualization under fluoroscopy.
Key Features
- Small footprint measures 30mm x 24mm
- Medium footprint measures 36mm x 28mm
- Large footprint measures 40mm x 29mm
- Heights range from 10mm to 18 mm in 2mm increments
- 8° and 14° lordotic angles
Lumbar

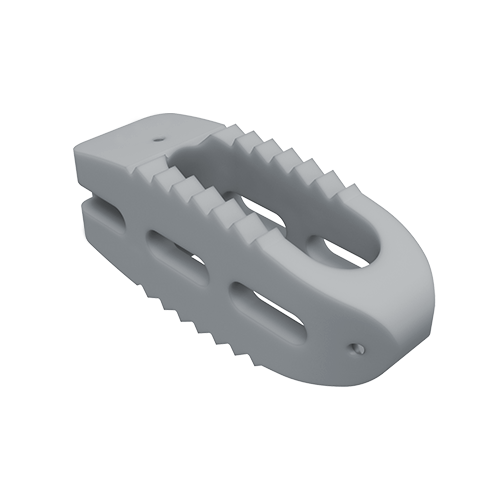

Tahoe TPLIF
The Tahoe transforaminal posterior interbody fusion (TPLIF) device offers a large endplate contact area to enhance vertebral support and reduce the risk of subsidence. With instrumentation conveniently organized in a single tray, it simplifies sterile processing and use in the operating room.
Key Features
- Available in 27mm and 31mm lengths
- 11mm Width
- Height ranges from 7mm to 16mm in 1mm increments
- Parallel and 5° Lordotic Angles
- Large graft window for a strong fusion column
Thoracic

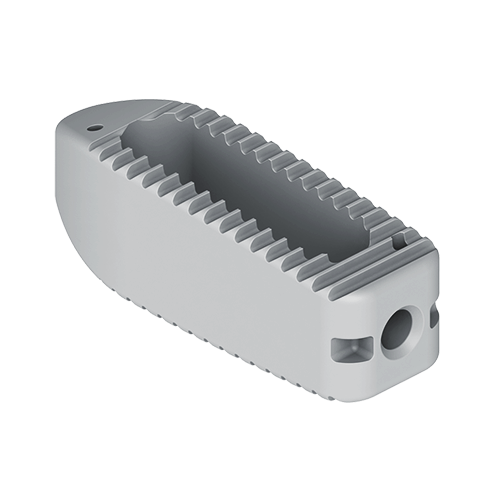

Aspen PLIF
The Aspen posterior lateral interbody fusion (PLIF) cage is available in various lengths and heights to accommodate patient anatomy and features a bulleted nose for smooth insertion. All instrumentation is supplied in a single tray, streamlining sterile processing and use in the operating room.
Key Features
- Lengths of 24mm, 27mm, and 31mm x 9mm Width
- Heights from 7mm-16mm in 1mm increments
- Parallel and 5° Lordotic angles
- Large graft window for a strong fusion column
Lumbar

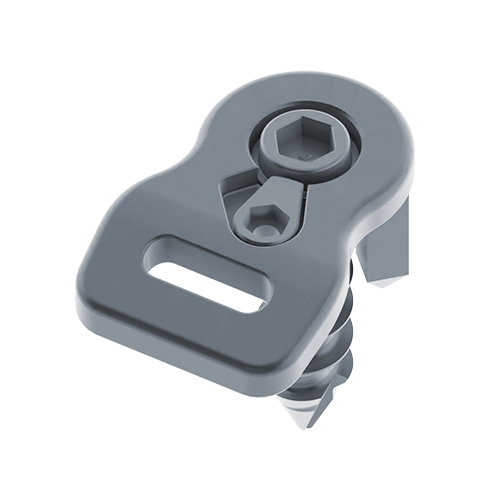

Vail Alif Buttress Plate
The Vail Alif Buttress Plate is a fixation system designed to stabilize the interbody allograft or autograft at a single level during spinal fusion development. Shaped to conform to the anatomy of the anterior lumbar and lumbosacral spine, this plate provides reliable support throughout the fusion process.
Key Features
- Vail Alif Buttress Plate delivers simplicity in design and ease of use through user-friendly instrumentation
- The system also includes locking and non-locking bone screws available in two diameters and multiple lengths
